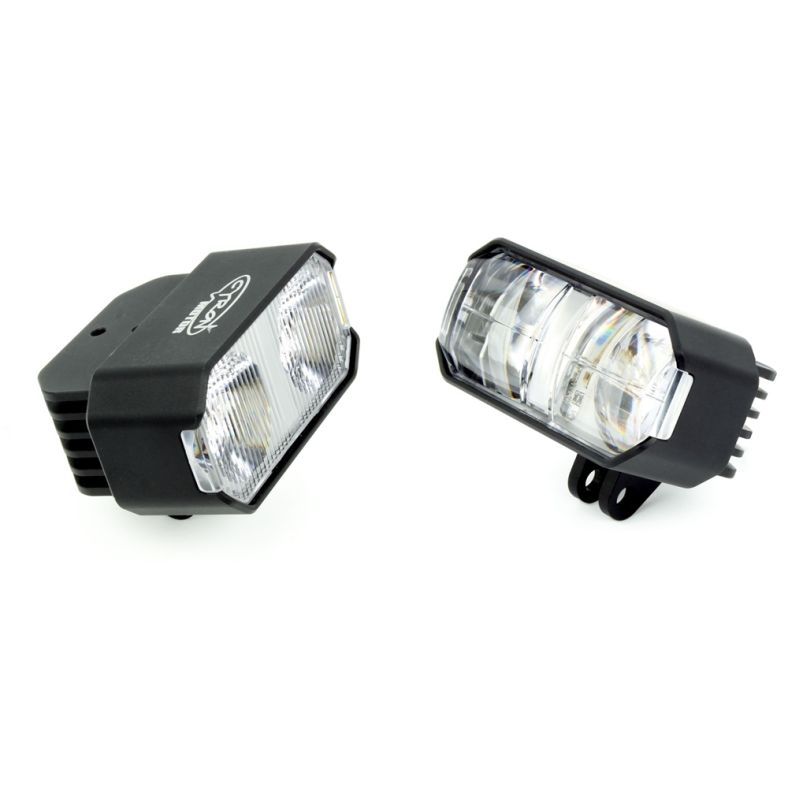

ABS1 series of aux lights are designed to produce the most amount of light with a smallest form factor. Amazing power from a light so small. Available in two beam patterns "flood" and "driving/linear", this kit offers one of each light to improve both low beam and high beam visibility.
Driving/linear features:
- Linear low beam pattern with near-zero glare which can be used on the road and off-road
- Change "Low Beam" light colors with a flick of a button. No need to manually change lenses. Choice of White, Yellow, White+Yellow
Small form factor 3" x 1.5" x 2" (W x H x D)
Brightest for its size
Round flood beam supplements high beams
Driving linear beam supplements low beams and DRL
Includes low profile mounting bracket clamps 1.5" (32mm)
Optional 1" clamps avail
IP67 ingress waterproof rating
No radio/CB interference
Kit includes multifunction cord ABS1CRD, eliminating the need of external relays.
NOTE: During normal driving/riding with low beam lights on, only ABS1L (one light) will be on. When switched to high beam both ABS1L and ABS1H will be on. If you are concerned about cosmetic symmetry, wanting left side aux light and right side both be on, then you have three options:
1. Connect both lights to low beam, making sure ABS1H is aligned such that you are not blinding the oncoming traffic.
2. Using two ABS1H and using ABS1CRD connect both to high beam. Connecting to low beam is not suggested.
3. Using two ABS1LW and connect both to low beam. They will remain on in high beam as well.
For road use driving light must be aligned properly to avoid disturbing other drivers. Not DOT tested.
Operating voltage 12VDC
Socket, 18AWG Waterproof
Peak LED power 100W (ABS1H 50W, ABS1L 50W)
Nominal power 83W
Max Lumens 8000Lm
IP67 ingress waterproof rating
Zero radio noise, No EMI
One year manufacturer warranty
Includes multifunction cord ABS1CRD
