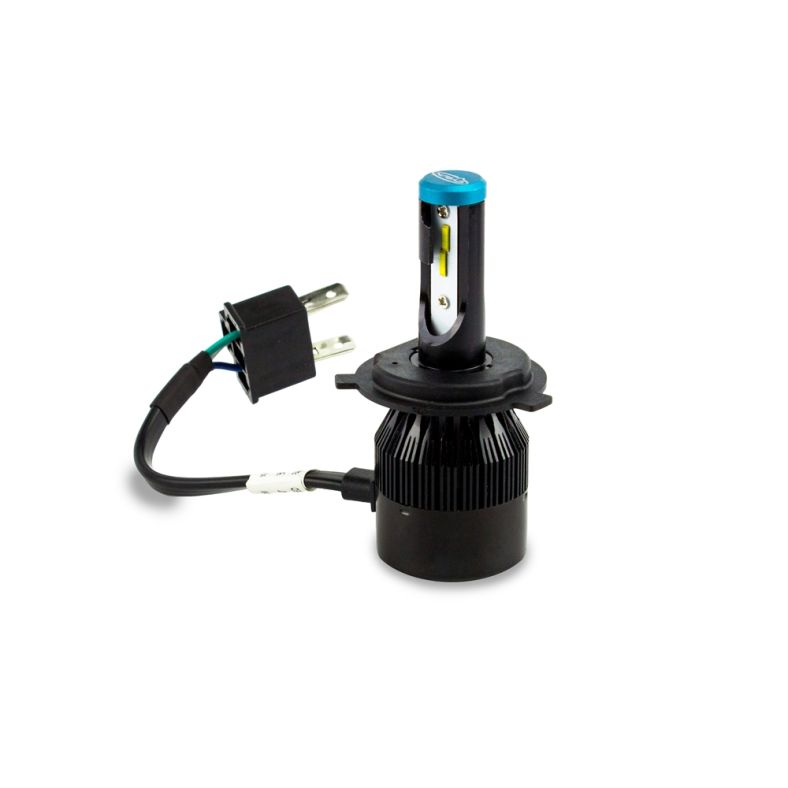

Headlight Bulb, LED Elite MINI 2800 Lumens, ABH4-BM6K
Special Price
$19.97
Regular Price
$64.95
In stock
H4 Elite Mini is designed for small housings specifically HarleyTM 5 3/4” buckets.
Controlled Collapse Chip Connection technology or “C4” reduces the physical size of the LED light source to closely resemble a halogen filament which most headlights are mainly designed for. Results are a high precision 90% accurate light pattern while offering all the benefits of the LED technology. Cyron Elite bulbs greatly enhance your visibility and virtually eliminate glare for other drivers. That means added safety for you and all others on the road.
Controlled Collapse Chip Connection technology or “C4” reduces the physical size of the LED light source to closely resemble a halogen filament which most headlights are mainly designed for. Results are a high precision 90% accurate light pattern while offering all the benefits of the LED technology. Cyron Elite bulbs greatly enhance your visibility and virtually eliminate glare for other drivers. That means added safety for you and all others on the road.
New and improved Active Heat Management System with a Smart design now monitors and maintains the temperature of the bulb. A must for all tight fitting applications such as motorcycle buckets, and confined spaces, this feature will prevent overheating and therefore greatly extending the bulb life .
Built-in ballast with EMI noise filters will not affect the radio and CB reception.
Replaces most H4 style bulbs. Drop in replacement for most Harley Davidson model years 1992 and newer. Will not fit V-Rod, 2011+ CVO models, and newer dual-bulb headlights. See Cyron model ABH9 for those models. Not a good fitment for Victory Gunner. Modification to the retaining ring is needed.Consult your motorcycle manual for type of bulb and the fittings. 1 year limited manufacturer warranty. Not DOT tested. Designed according to DOT specifications. Due to higher brightness of the LED bulb the headlight trim angle may need to be adjusted to avoid disturbing other drivers.
Matching LED passing/spot lamps for Harleys are available AB881-A6K or ABIG4.5-A6K
Installation notes:
1. There should be minimum 0.5 inch space behind the bulb to allow for air circulation. Covering the far end of the bulb blocks the air intake of the fan, therefore making it practically useless. Manage cords and wire harness out of the way to allow for such clearance.
2. Reflector nose cones are often placed inside the headlight reflectors when using stock halogen bulbs. This causes excessive radiated heat to the LED elements. On Many cars and motorcycles this nose cone can be removed. Cut at the stem and discard the cone piece. Re-use the stem/base back in its place to allow for securing the retaining spring.
- 90% beam accuracy
- 20,000 hours life
- Slim body size
- Integrated internal ballast with EMI filters
- Quiet cyclone fan
- Smart Active Heat Management System
- 2800 lumens in high or low beam
- 6000K color temp
- 25W peak power
- 20W nominal power
- 9-36 volts
- IP21 weather resistant ingress
- 1 year replacement warranty
- Hi/Lo Beam
- H4, 9003/HB2, aka P45T socket
| Size | Daylight White 6500K |
|---|---|
| Color | Daylight White (6500K) |
| Manufacturer | CyronMotor |
| width | 9.5 |
| UPC | 811467012341 |
| length | 6.5 |
| height | 2.5 |
